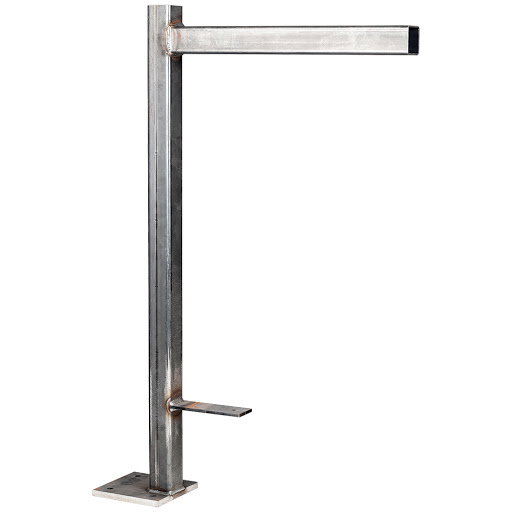

Atlas Floating Vanity Support

Available from Federal Brace

The Atlas Floating Vanity Support is our inaugural product launch in the new Atlas Collection of heavy-duty braces. Like their namesake, these industrial strength supports can carry the weight of the world. One of the largest supports in our line, the Atlas Floating Vanity is designed for heavy duty loads with its 2x2 fortified tube and half-inch thick, 6x6 plate. This brace is built to last for any commercial application. Once installed in 4" of concrete using 3/8" anchors, it boasts an astounding 2000-pound carry capacity across 3 supports. Using 2 supports will float 1500 pounds along with an additional 300-pound point-load on the end of the sturdy, steel arm. Unfinished steel can be finished on jobsite or quoted with powdercoat for project specific requirements.

Product Overview:
Sizes: 37.5" Tall, 6"x6" Mounting Plate, Lower Plate 7.5" From Bottom
Finish: Steel (Unfinished)
Material Thickness: 11 Gauge Tube
Holes: Mounting Plate (4) 0.4375", Lower Plate (1) 0.25"
Screws: Bearing Plate - 3/8" Anchors Required
Carry Capacity: (2) - 1800 Pounds, (3) - 2300 Pounds
Fasteners Not Included
